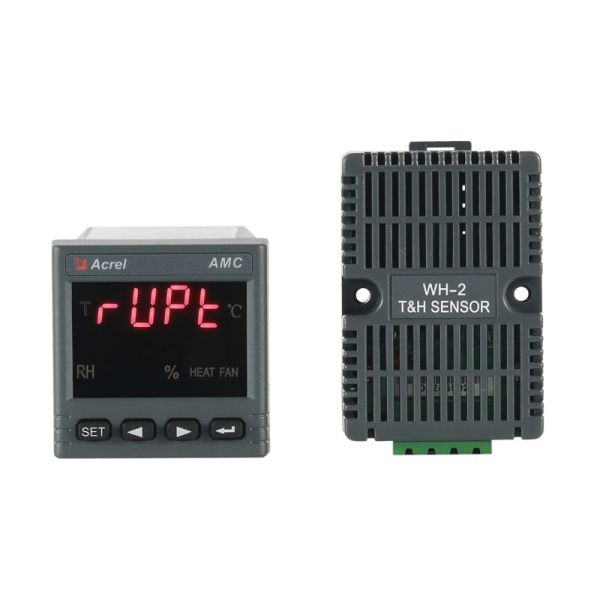

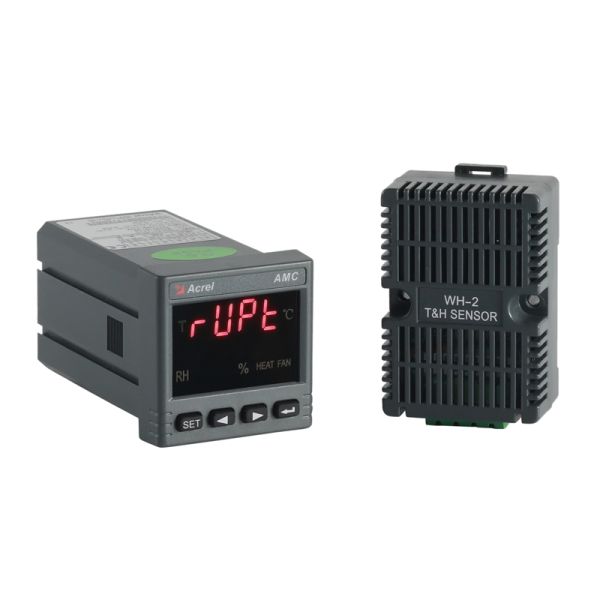

ISO9001 5A/AC250V Digital Temperature And Humidity Controller WHD48-11 Acrel

Name: ISO9001 5AAC250V Digital Temperature And Humidity Controller WHD4811 Acrel
Brand: Acrel
Price: 35.00 USD

Wholesale ISO9001 5A/AC250V Digital Temperature And Humidity Controller WHD48-11 Acrel from china suppliers

Place of Origin : Jiangsu, China

Brand Name : Acrel

Model Number : WHD48-11

MOQ : 1-19 Pieces

Price : $35.00

Display : LED Display

Communication : RS485 Port MODBUS-RTU Protocol

Certificate : CE ISO9001

Function : Measurement

Temperature range : -40.0℃~99.9℃

Humidity range : 20%RH~90%RH

Contact capacity : 5A/AC250V

Power supply : AC 85~265V DC 100~350V

Brand : OEM ODM

Installation : Panel mounting

Selling Units : Single item

Single package size : 17X15X13 cm

Single gross weight : 0.600 kg

Package Type : It is packed in a crash bag and then put into a cardboard box.

Contact Now

ISO9001 5A/AC250V Digital Temperature And Humidity Controller WHD48-11 Acrel

WHD48-11 Temperature & Humidity Controller

● Optional function: communication

● Temperature and humidity measuring & controlling

● Panel mounted

Characteristic

Communication

RS485 (Modbus-RTU)

Display

LED display

Function

Accuracy
Temperature ±1℃
Humidity ±5%RH

Auxiliary power supply
AC 85-265V, DC 100-350V

Consumption
Auxiliary power supply:
Basic power consumption(≤0.8w)
Relay power consumption(each channel≤0.7w)

Installation:
Panel mounted

Dimension(L*W*H):
Pannel size (L×W): 48*48mm
Cutout size (L×W): 45*45mm
Housing (L×W×H): 44*44*86.7mm

Technical Parameter			Value
Measuring range	Temperature	-40.0℃～99.9℃
Measuring range		Humidity	20%RH～90%RH
Accuracy	Temperature	±1℃
Accuracy		Humidity	±5%RH
Analog output			DC 4～20mA
Set range of controlling parameter	Heating for Temperature rising	-40.0℃～40.0℃
		Blowing for temperature decreasing	0℃～99.9℃
		Humidity control	20%RH～90%RH
Contact capacity			5A/AC250V
Communication			RS485(MODBUS-RTU)
Auxiliary power supply	Working range	AC 85～265V DC 100～350V
Auxiliary power supply		Consumption	Basic power consumption(≤0.8w)+ relay power consumption(each channel≤0.7w)
Insulation resistance			≥100MΩ
Environment	Temperature	-20℃～+60℃
		Humidity	≤95%RH(No condensation)
		Altitude	≤2500 m

Appearance

Wiring.

Typical connection
